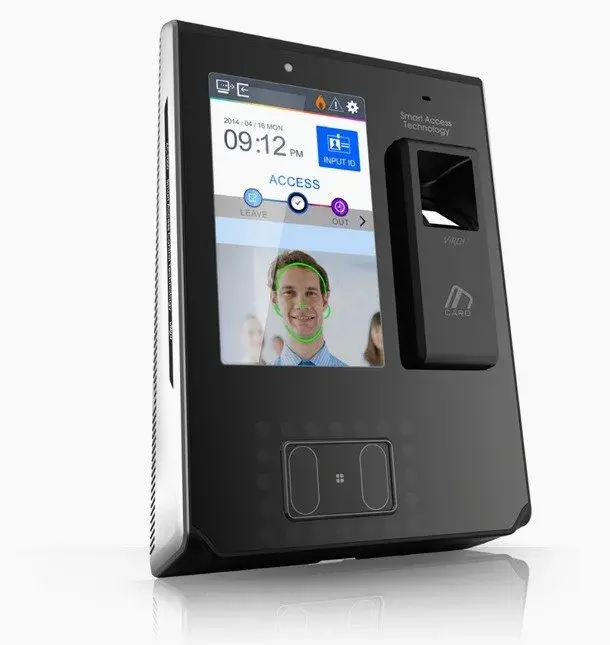

AC-7000 is the latest access controller with fake finger detection and a tilt camera which automatically detects a face within 3m. Its 5″ touch LCD and familiar UI such as Android smartphone Apps greatly enhance user convenience.
Specifications
CPU : 1 GHz Quad Core (Dual)
Memory : 4GB NAND + 8GB microSD
Max Users : Finger 250,000 (1:1) / 25,000 (1:N) Face 10,000 (1:1) / 2,000 (1:N)
Log Capacity : 10,000,000(text) / 20,000(image)
Certificates : KC, CE, FCC, RoHS
LED : 5" Color Touch LCD
Power Consumption : 12V, Max 900mA (10.8W)
Communication : TCP/IP, Wiegand, RS485,RS232, Wi-Fi (Optional)
Dimension : 149.5 x 208.5 x 46 mm
RFID Card Option : 125KHz EM & 13.56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional)

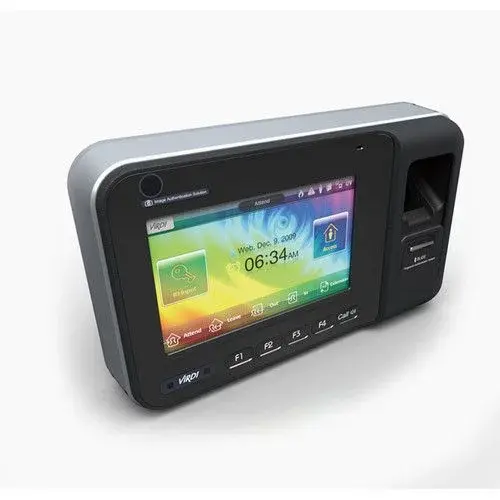

ViRDI AC-6000
This state of the art terminal embraces the latest technology with a large color touch screen LCD, embedded digital camera and extremely fast processor.
Specifications
CPU : 1 GHz Quad Core (Dual)
Memory : 4GB NAND + 8GB microSD
Max Users : Finger 250,000 (1:1) / 25,000 (1:N) Face 10,000 (1:1) / 2,000 (1:N)
Log Capacity : 10,000,000(text) / 20,000(image)
Certificates : KC, CE, FCC, RoHS
LED : 5" Color Touch LCD
Power Consumption : 12V, Max 900mA (10.8W)
Communication : TCP/IP, Wiegand, RS485,RS232, Wi-Fi (Optional)
Dimension : 149.5 x 208.5 x 46 mm
RFID Card Option : 125KHz EM & 13.56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional)
ViRDI AC-5100
Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key
Specifications
CPU : ARM, 533MHz CPU
Memory : 128MB RAM + 32MB FLASH Memory
Max Users : 20,000 (1:1) 15,000 (1:N)
Log Capacity : 64,000
Certificates : KC, CE, FCC, RoHS
LED : 2.8” Color LCD
Power Consumption : 12V, Max 350mA (4.2W)
Communication : TCP/IP, Wiegand In/Out, RS485, RS232
Dimension : 88 x 175 x 43.5 mm
RFID Card Option : 125KHz EM & 13.56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional)

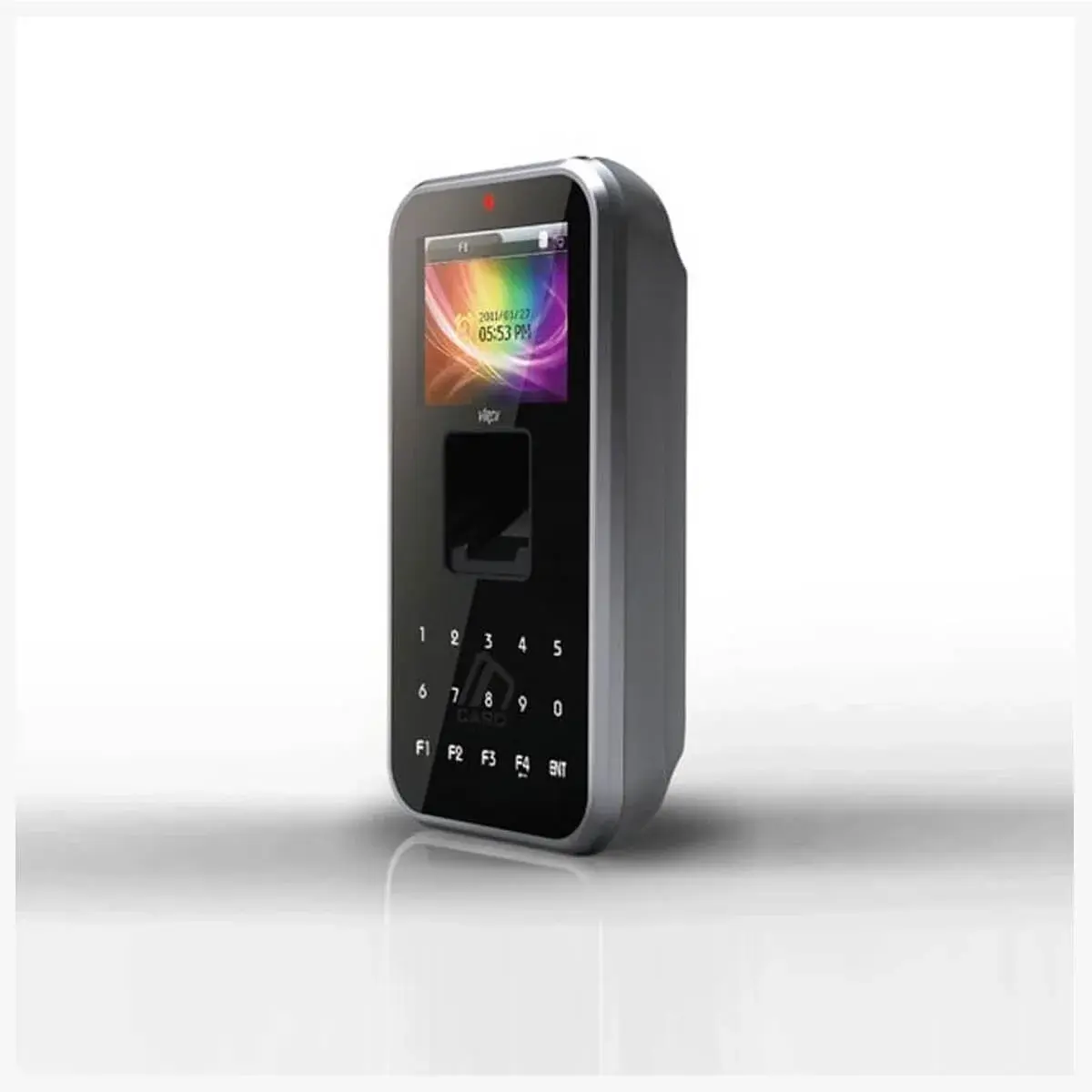

ViRDI AC-5000 Plus
IP65 Fingerprint / Card Terminal An evolution in fingerprint terminal technology, incorporating state of the art design, elegant looks and a robust IP65 rated housing.
Specifications
CPU : ARM, 533MHz CPU
Memory : 128MB RAM + 32MB FLASH Memory
Max Users : 20,000 (1:1) 15,000 (1:N)
Log Capacity : 64,000
Certificates : KC, CE, FCC, RoHS
LED : 2.8” Color LCD
Power Consumption : 12V, Max 350mA (4.2W)
Communication : TCP/IP, Wiegand In/Out, RS485, RS232
Dimension : 88 x 175 x 43.5 mm
RFID Card Option : 125KHz EM & 13.56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional)
Communication : Bluetooth, TCP/IP, Wiegand In/Out,\RS485, UDL
Dimension : 58 X 191 X 62 mm
RFID Card Option : 125KHz EM / 13.56MHz Smart card / Felica / DESFire / HID Prox(optional) / HID iClass(optional)

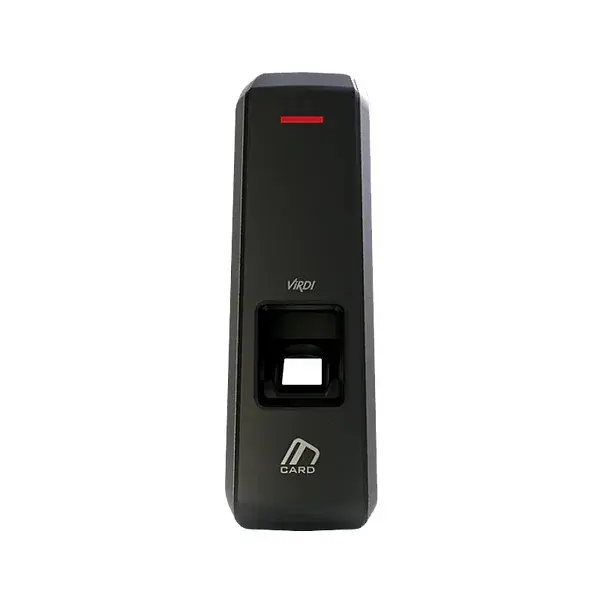

ViRDI AC-2000
IP65 Fingerprint Card Terminal with Bluetooth Mobile Key
Specifications
CPU :ARM9, 400MHz CPU
Memory : 32MB NOR, 64MB DDR RAM
Max Users : 1,500
Log Capacity : 51,000
Certificates : KC, CE, FCC, RoHS
LED : N/A
Power Consumption : 12V, Max 400mA (4.8W)
Communication : Bluetooth, TCP/IP, Wiegand In/Out, RS485
Dimension : 58 x 191 x 62 mm
RFID Card Option :125KHz EM / 13.56MHz Smart card / Felica / DESFire / HID Prox(optional) / HID iClass(optional)

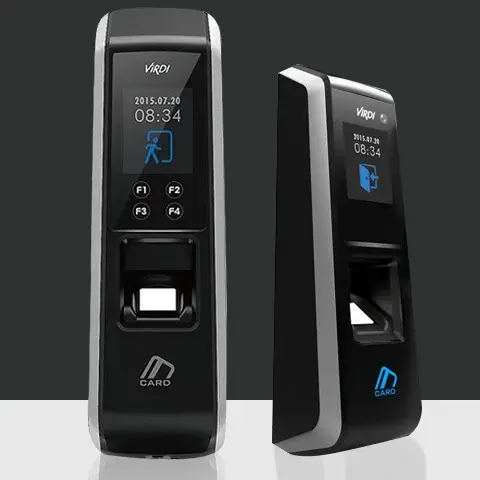

ViRDI AC-2100
IP65 Fingerprint Card Terminal
Specifications
CPU : ARM9, 400MHz CPU
Memory : 32MB NOR+128MB NAND FLASH
Max Users : 1,500
Log Capacity : 1,00,000
Certificates :KC, CE, FCC, RoHS
LED : 1.77 inch Color LCD
Power Consumption : 12V, Max 400mA (4.8W)
Communication : Bluetooth, TCP/IP, Wiegand In/Out,\RS485, UDL
Dimension : 58 x 191 x 62 mm
RFID Card Option : 125KHz EM / 13.56MHz Smart card / Felica/DESFire / HID Prox(optional) / HID iClass(optional)
ViRDI AC-1100
Card Terminal with Camera Bluetooth Mobile Key
Specifications
CPU :1 GHZ Single core
Memory : 512MB RAM + 8GB eMMC(NAND)
Max Users : 2,00,000
Log Capacity : 1,000,000 / 15,000 Images
Certificates : KC, CE, FCC, RoHS
LED : 4 Inch Color Touch LCD(Resistive)
Power Consumption : 12V, Max 580mA (7W)
Communication : TCP/IP, RS232, RS485 Wiegand In/Out,Wireless LAN(optional), Bluetooth
Dimension : 80 x 153 x 18.2 mm
RFID Card Option : 125kHZ-EM / 13.56MHz Smart Card / Felica/ HID prox, SAM Slot

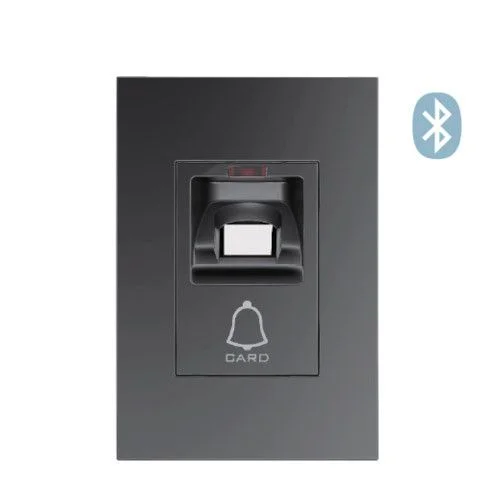

ViRDI FMD-10
The FMD10 is a budget Biometric Terminal complete with 13.56MHz card reader. The terminal is utilised in stand-alone environments or in conjunction with the MCP-040 where biometric access control is required but networking and cabling is problematic
Specifications
Communication : Bluetooth, Wiegand Out, RS485
Relay / Buzzer : 1 Relay / 1 Buzzer
Log Capacity : 10,000
Max Users : 1,000
Dimension : 72 x 111.6 x 52 mm
Supply Voltage : 12V or 24V, Max 300mA (3.6W/12V)

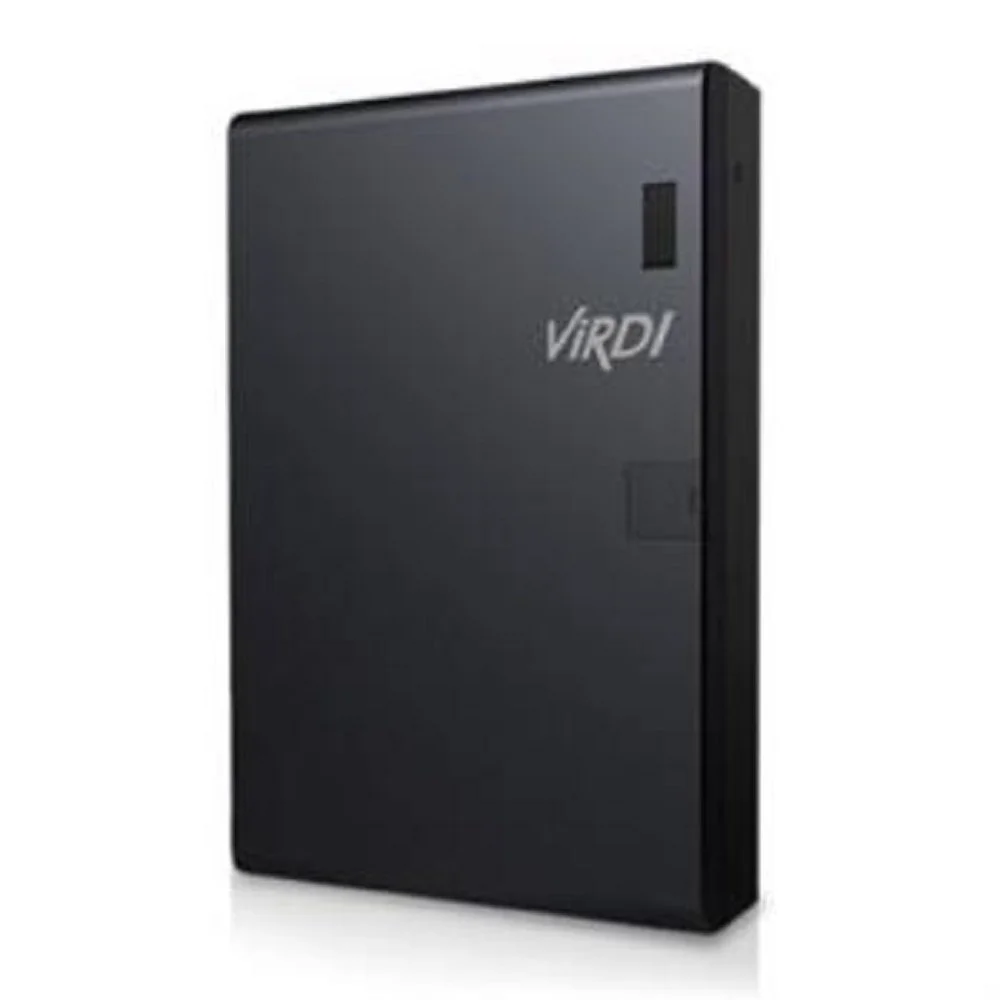

ViRDI MCP-040
4 Door controller THE MCP-040 is a 4 Door Controller with an integrated 8 zone Intruder Alarm System.
