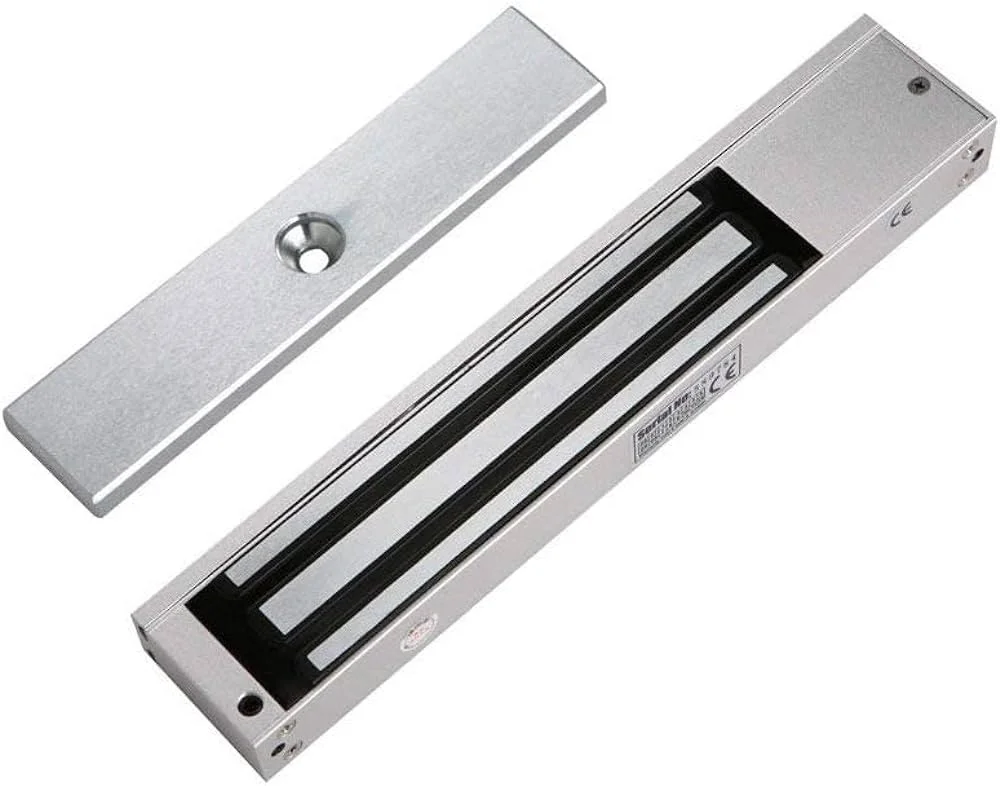

Electro Magnetic Lock 600lbs with LED
Features
- Collinear Load Test 280kg,600lbs
- Operated Voltage 12 VDC
- MOV Provides Reverse Current Protection
- Suitable For Wooden Door,Glass Door,Metal Door
- Anti-Residual Magnetism Designed
- High Strength Material
Technical
- Lock Size : 250Lx42Wx25H(mm)
- Armature Plate : 180Lx38Wx11H(mm)
- Weight : 12kg.
- Standard Packing : 12 Pieces

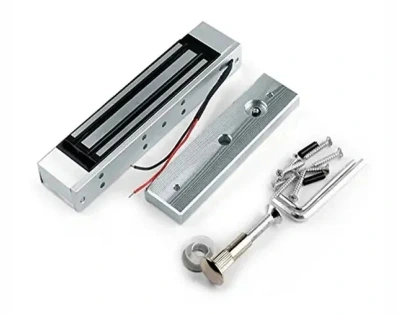

Electro Magnetic Lock 600lbs with Feedback
Features
- Collinear Load Test 280kg,600lbs
- The Standard Voltage is 12VDC when Finished
- Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
- LED indicates the door is unlock, Green indicates the door is lock
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed
- Dual Voltage 12 or 24 VDC(optional)
Technical
- Holding Force : 280KG/600lbs
- Dimension : 250*48*27mm
- Armature Plate : 180Lx38Wx11H(mm)
- Door Status : Sensor(NO/NC/COM)
- Voltage : 12/24VDC - OPTIONAL
- Current : 0.48A/0.24A
- Current Draw : 12V/500mA 24V/250mA
- Operating Temp : -20°C ~ 60°C

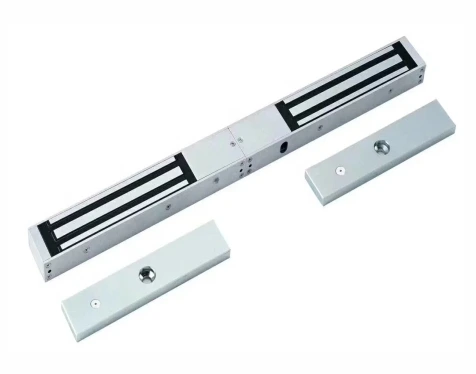

Electro Magnetic Lock 1200lbs [Double Leaf]
Features
- Collinear Load Test 1200lbs
- Suitable for Wooden Door, Glass Door, Metal Door
- Anti-Residual Magnetism Designed
- High Strength Material, Anodized Aluminum Housing
- Design with no Mechanical Bolt
Technical
- Lock Size : 500*96*27mm
- Armature Plate : 180Lx38Wx11H(mm)
- Voltage : 24VDC
- Current : 0.48A

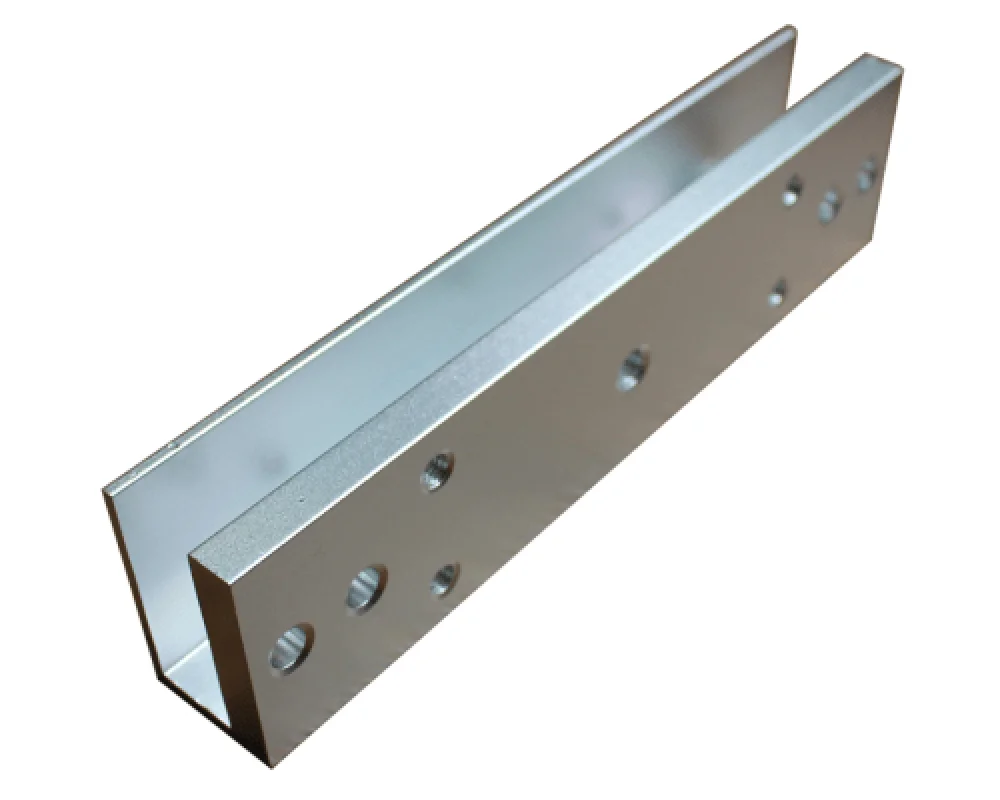

U Bracket for Glass Door
Features
- Suitable for EM Locks of any make
- Suitable for Frameless glass door
- Opening Mode: In/Out-swing Door
- Door Mode: 90 Door
- Finished for Shell: Anodized Aluminum
Technical
- Material Selection : High Strength Aluminum
- Suitable for Door : Glass Door (Moving Leaf)
- Opening Mode : 90 Degree Door
- Use with : Magnetic Lock Series of 180Kgs
- Finished for Shell : Anodized aluminum
- Net Weight : 0.242kg

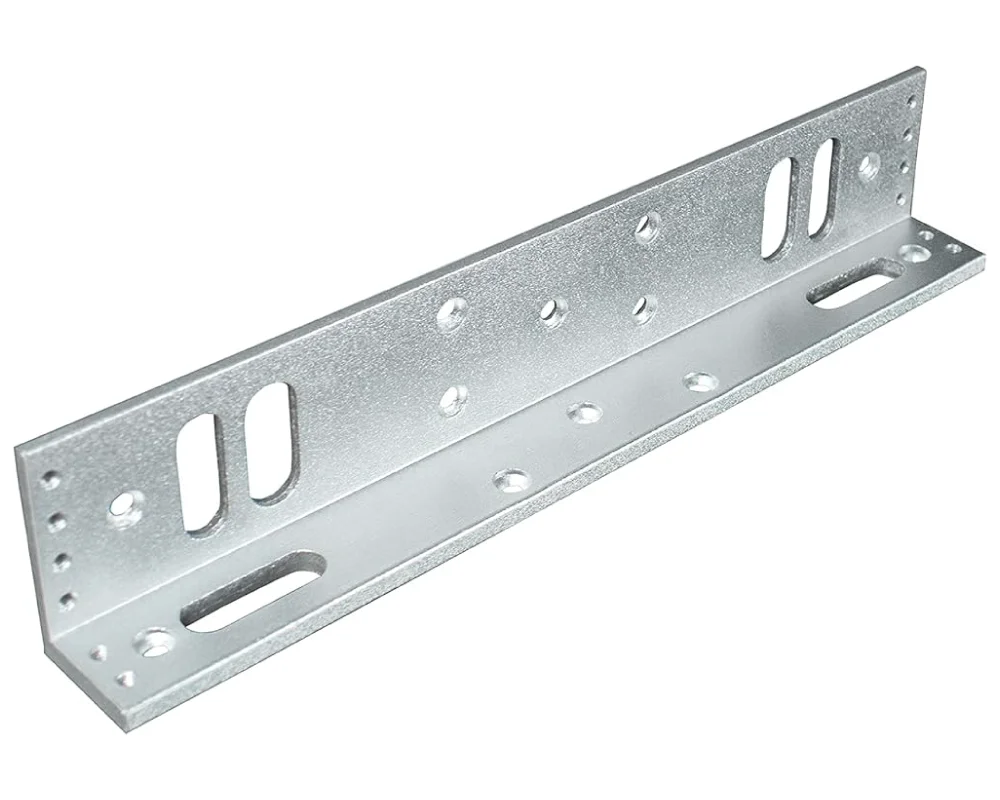

L Bracket for EM Lock
Features
- Suitable for EM Lock
- Opening Mode: In/Out-swing Door
- Door Mode: 90 Degree Door
- Finished for Shell: Anodized Aluminum
Technical
- Material Selection : High Strength Aluminum
- Suitable for Door : Small Frame
- Opening Mode : 90 Degree Door
- Use with : Magnetic Lock Series of 280Kgs
- Finished for Shell : Anodized aluminum
- Net Weight : 0.242kg

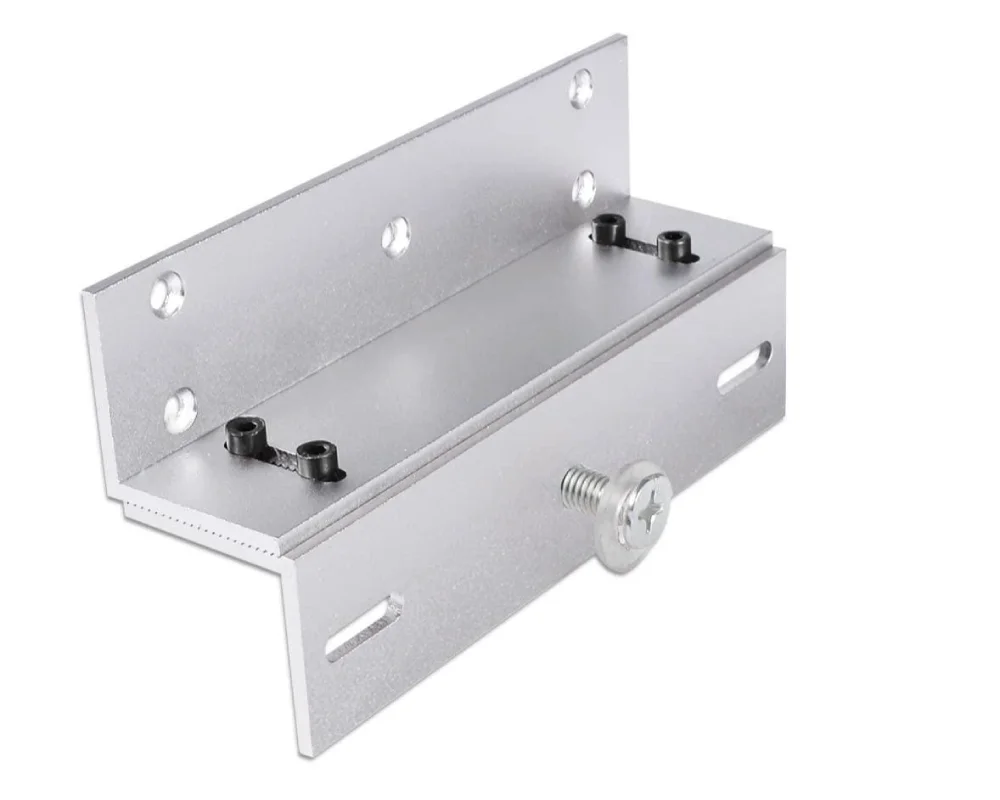

Z Bracket
Features
- Suitable for EM Lock
- Suitable for Panic Door, Fireproof Door
- Opening Mode: In/Out-swing Door
- Door Mode: 90 Door
- Finished for Shell: Anodized Aluminum
Technical
- Material Selection : High Strength Aluminum
- Suitable for Door : Fully Frameless Glass
- Opening Mode : 90 Degree Door
- Use with : Magnetic Lock Series of 280Kgs
- Finished for Shell : Anodized aluminum
- Net Weight : 0.370kg

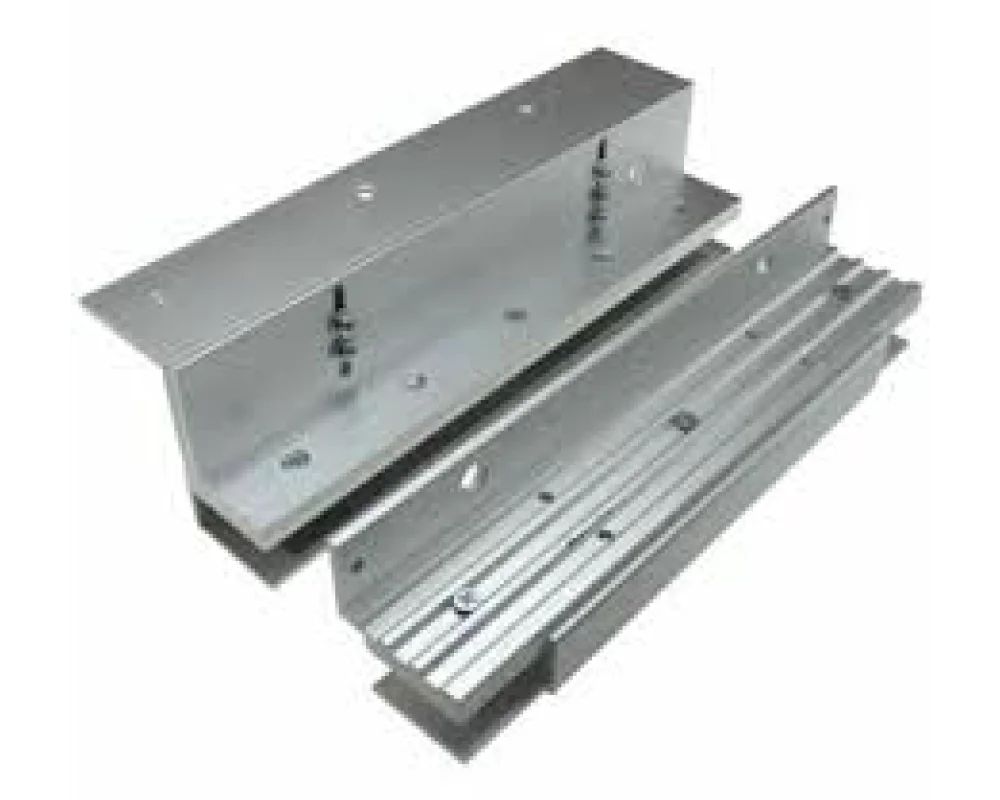

GG Bracket
Features
- Suitable for EM Lock
- Opening Mode: In/Out-swing Door
- Finished for Shell: Anodized Aluminum
Technical
- Material Selection : High Strength Aluminum
- Suitable for Door : Fully Frame Glass
- Opening Mode : 180 Degree Door
- Use with : Magnetic Lock Series of 280Kgs
- Finished for Shell : Anodized aluminum
- Net Weight : 0.600kg

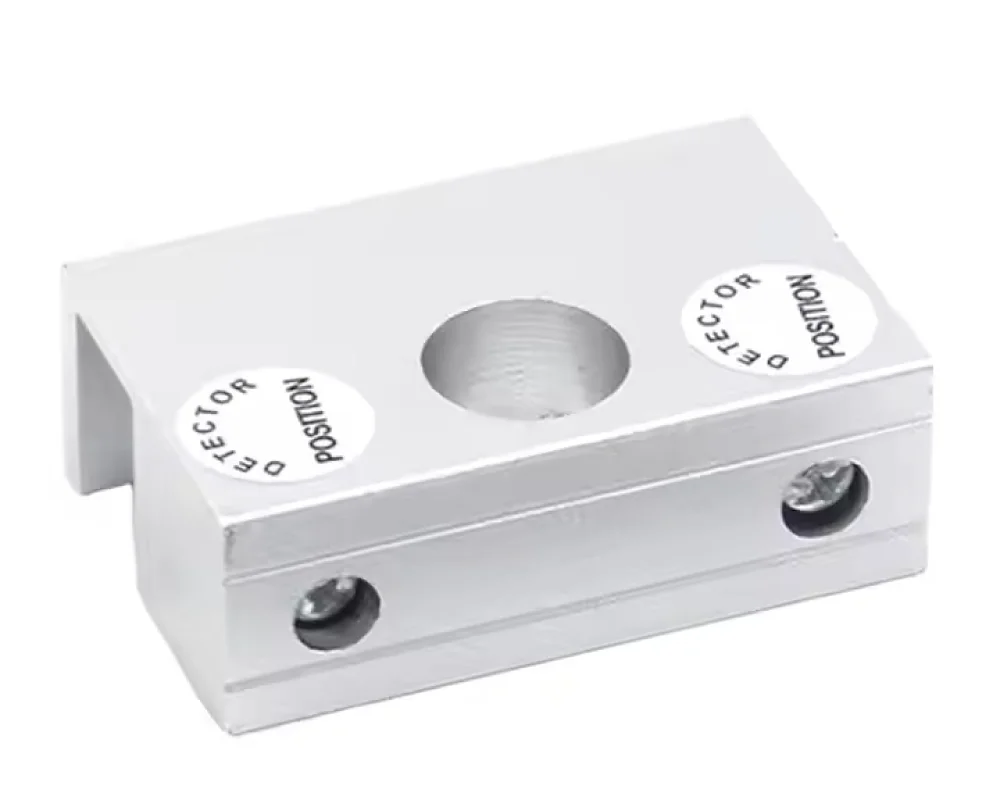

Bracket for Electric drop bolt lock
Features
- The Best Choice of Access Control
- Standard Structure: Special Aluminum, Firm and Durable
- Suitable for Door: Frameless Glass Door
- Glass Thickness: 10-15mm
- Opening Mode: 0 or 180 Degree Door
- Use with: Electric Bolt Lock
Technical
- Material Selection : High Strength Aluminum
- Suitable for Door : High Strength Aluminum, Sandblast Finished
- Glass Thickness : 10-15mm
- Opening Mode : 90 Degree or 180 Degree
- Use with : Magnetic Lock Series of 280Kgs
- Finished for Shell : Anodized aluminum
- Net Weight : 0.3kg
Stainless Steel Exit Switch 3X3
Features
- Design with No Mechanical Bolt
- Stainless Steel Panel with Elegant Style
- Tested to 500000 Cycles
- 2 Contact Suitable All Kinds of Locks
- The Best Choice of Access Control
Technical
- Input Volt : DC 12V
- Current Rating : 3A@36VDC
- Operation : Push Button
- Output Contact : NO,COM
- Suitable for Doors : Hollow Door

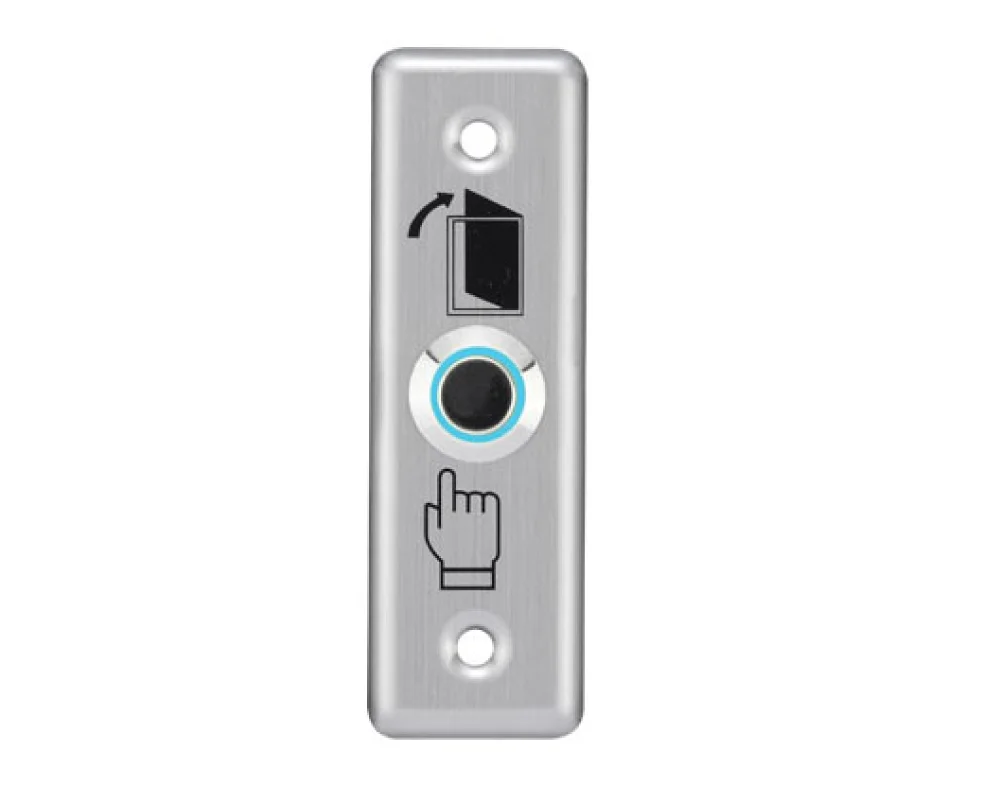

Stainless Steel Exit Switch 3X1
Features
- Design with No Mechanical Bolt
- Stainless Steel Panel with Elegant Style
- Tested to 500000 Cycles
- 2 Contact Suitable All Kinds of Locks
- The Best Choice of Access Control
Technical
- Input Volt : DC 12V
- Current Rating : 3A@36VDC
- Operation : Push Button
- Output Contact : NO,COM
- Suitable for Doors : Hollow Door

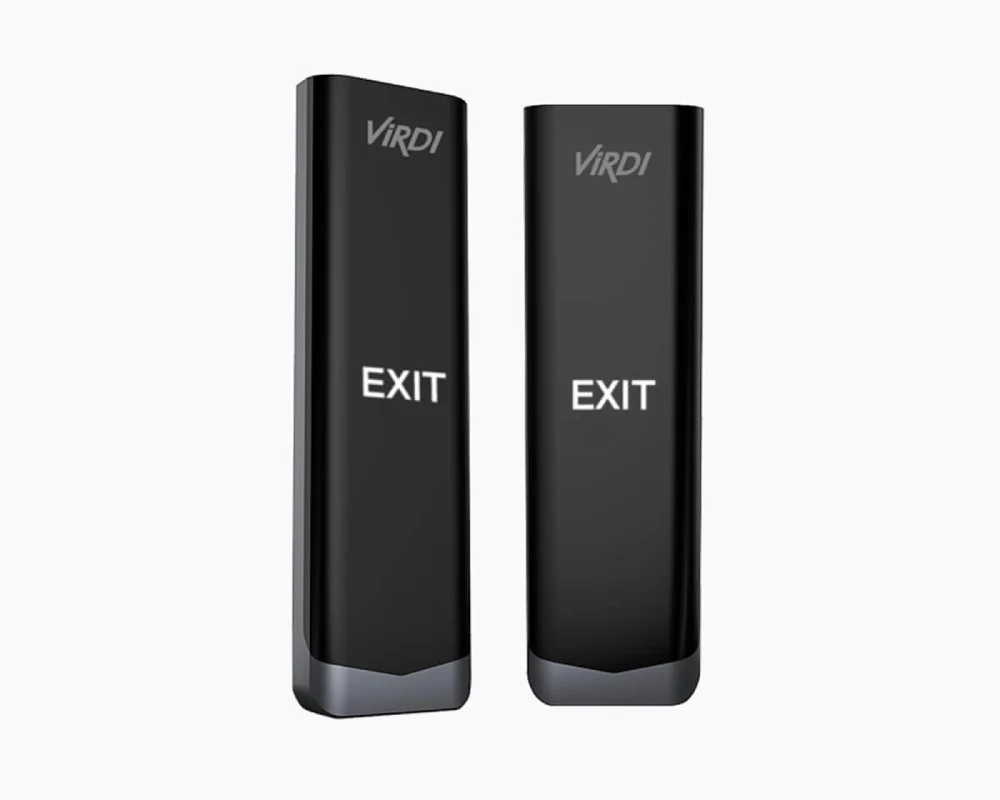

Virdi EB030
Features
- Contactless Exit Button
- Beep Sound
- LED Status Indicator
Technical
- Input Volt : DC 12V
- Dimension : 35 x 125 x 11.5 mm
- Contact : NO / NC / COM
