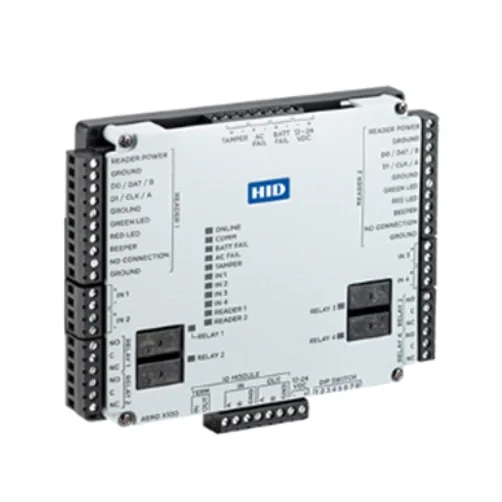

The HID Aero X100 provides on-board IO support for up to two access points and two (Wiegand) or four (OSDP) readers. Four robust relays provide door lock and auxiliary output control while seven supervised inputs are used to monitor door status, REX, power supply, battery, tamper and general-purpose inputs status, all supporting analog-to-digital conversion.
Attach the X100 to an X1100 intelligent controller to perform full access control processing or attach multiple X100s to control more doors.
Key Features :
OSDP Reader Support - Increases security and functionality with secure channel and bi-directional communications
IO Module Encryption - Enhances security between intelligent controller and IO modules with AES-256 encryption
Crypto Chips - Protects against malicious attacks to keep keys and passwords safe
Threat Levels - Define up to seven different threat levels that are used to instantaneously adjust user access during lockdowns and lockouts

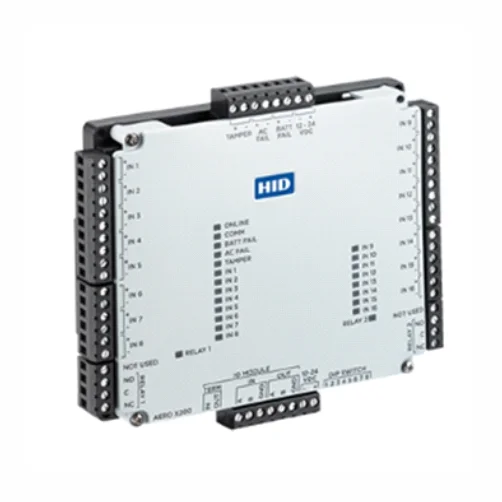

HID Aero X200
The HID Aero X200 provides on-board IO support for up to sixteen general purpose inputs (supervised or unsupervised) and two general purpose outputs. All supervised inputs support analog-to-digital conversion.
Attach the X200 to an X1100 intelligent controller to perform full input monitor processing or attach multiple X200s to monitor more inputs.
Key Features :
Custom Rules Processing: Use X200 in conjunction with custom rules engine on X1100 to create elaborate rules for handling input states
Supervised/Unsupervised Inputs: Supervised inputs can support custom A-to-D conversion
IO Module Encryption: Enhances security between intelligent controller and IO modules with AES-256 encryption
Crypto Chips: Protects against malicious attacks to keep keys and passwords safe
Threat Levels: Define up to seven different threat levels that are used to instantaneously adjust user access during lockdowns and lockouts

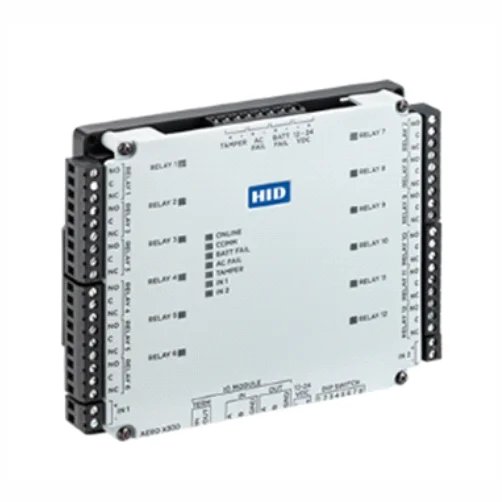

HID Aero X300
The HID Aero X300 provides on-board IO support for up to twelve control points and four monitor points.
Attach the X300 to an X1100 intelligent controller to perform full access control processing or attach multiple X300s to control more outputs.
Key Features :
Custom Rules Processing: Use X300 in conjunction with custom rules engine on X1100 to create elaborate rules for handling input states
Elevator Control: Use in conjunction with X1100 elevator processing engine to control elevator floor access
IO Module Encryption: Enhances security between intelligent controller and IO modules with AES-256 encryption
Crypto Chips: Protects against malicious attacks to keep keys and passwords safe
Threat Levels: Define up to seven different threat levels that are used to instantaneously adjust user access during lockdowns and lockouts

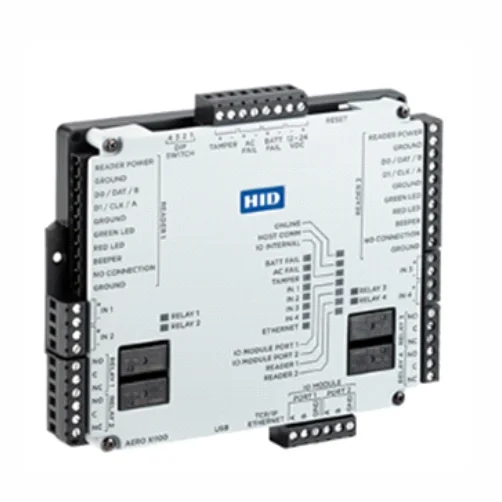

HID Aero X1100
X1100 provides on-board IO support for up to two access points and two (Wiegand) or four (OSDP) readers. Four robust
relays provide door lock and auxiliary output control while seven supervised inputs are used to monitor door status, REX, power supply,
battery, tamper and general-purpose inputs status, all supporting analog-to-digital conversion.
The X1100 communicates with HID Aero X100, X200 and X300 IO modules as well as VertX V100, V200 and V300
IO modules.
Key Features :
OSDP Reader Support - Increases security and functionality with secure channel and bi-directional communications
Robust Network Security - Supports mutual authentication using TLS 1.2 while running in a FIPS 140-2 approved operating environment on the intelligent controller
Crypto Chips - Protects against malicious attacks to keep keys and passwords safe
Threat Levels - Define up to seven different threat levels that are used to instantaneously adjust user access during lockdowns and lockouts
