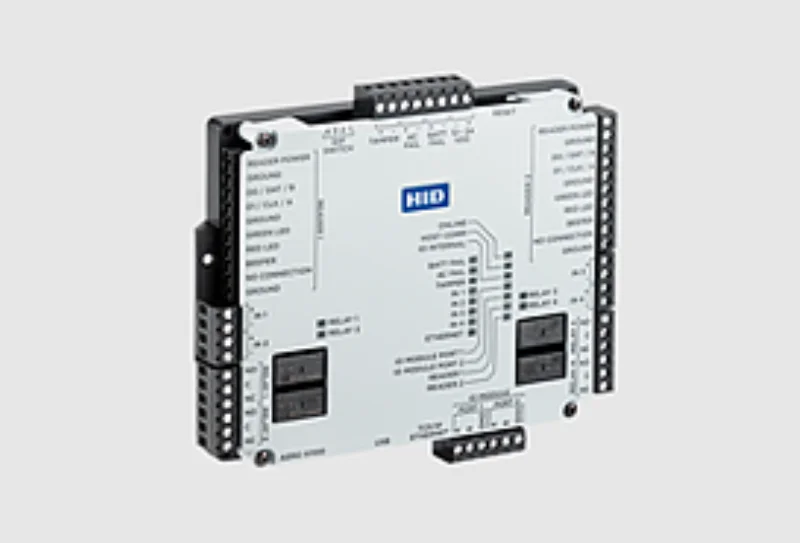

HID Aero X1100
Key Features :
- Description :Intelligent Controller — Up to 4 Readers, 7 Inputs, 4 Outputs
- Inputs :615 (using X200 or V200 IO modules) 7 supervised/unsupervised on-board, standard EOL: 1k/1kΩ 1%, 1/4 watt
- Output :388 (using X300 or V300 IO modules) 4 Relays, Form-C with dry contacts
- Relay Contact Rating :5A/3A (NO/NC) @ 30 Vdc resistive
- Input Voltage :12 to 24 Vdc +/- 10%
- Maximum Input Current :1.9 A (550mA excluding readers and USB)
- Operating Temperature :32 to 158°F (0 to 70°C)
- Dimension :6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm)
- Access Point Control :Up to 2 access points with on-board IO 64 (using X100 or V100 IO modules)
- Reader Support :Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO 64 (OSDP or Wiegand, regardless of IO module configuration)
- Access Levels :32 per credential (per reader schedule)
- Credential Capacity :250000
- Number of IO Module Buses :2 (each dedicated to either Aero or VertX IO modules)
- Ethernet Communication :10BaseT/100Base-TX

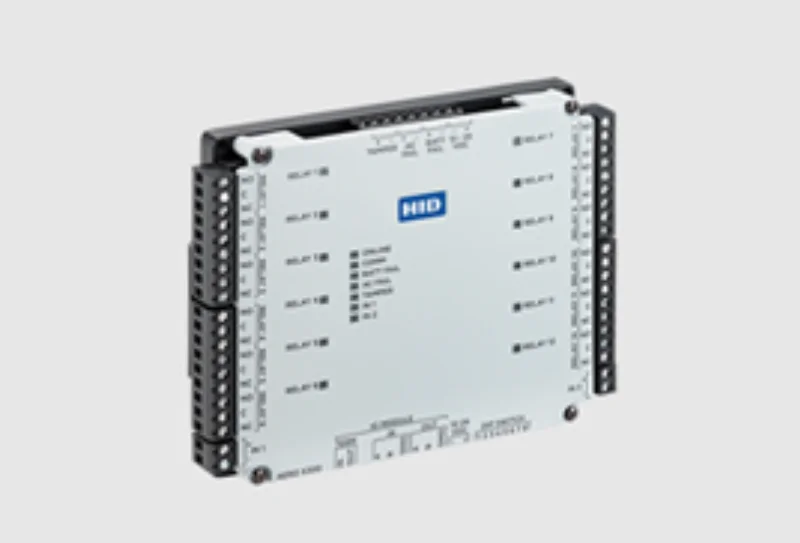

HID Aero X100
Key Features :
- Description :Input monitor interface module — supports up to 4 readers, 7 inputs, 4 outputs
- Inputs :7 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt
- Output :4 Relays, Form-C with dry contacts
- Relay Contact Rating :2 A @ 30 Vdc resistive
- Input Voltage :12 to 24 Vdc +/- 10%
- Maximum Input Current :1.9 A (550mA excluding readers and USB)
- Operating Temperature :32 to 158°F (0 to 70°C)
- Dimension :6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm)
- Access Point Control :Up to 2 access points with on-board IO
- Reader Support :Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO

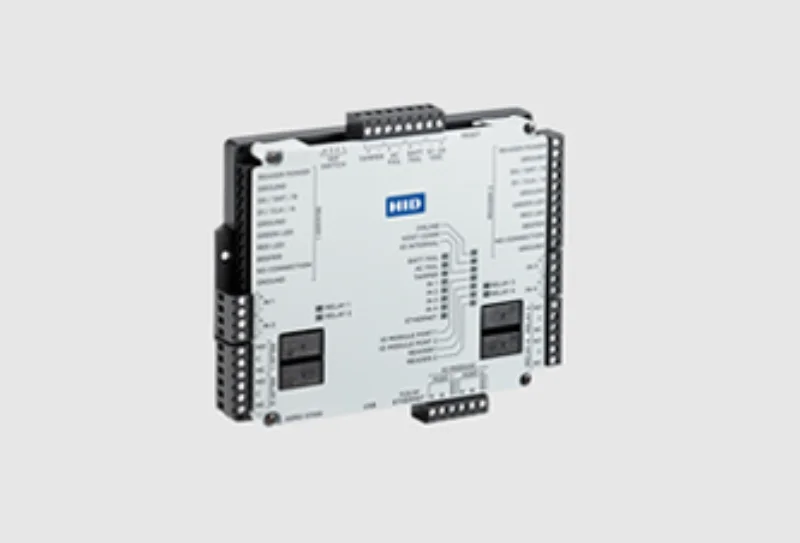

HID Aero X300
Key Features :
- Description :Output control interface module — controlling up to twelve general-purpose outputs
- Inputs :5 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt
- Output :12 Relays, Form-C with dry contacts, non-latching
- Relay Contact Rating :2 A @ 30 Vdc resistive
- Input Voltage :12 to 24 Vdc +/- 10%
- Maximum Input Current :500 mA
- Operating Temperature :32 to 158°F (0 to 70°C)
- Dimension :6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm)

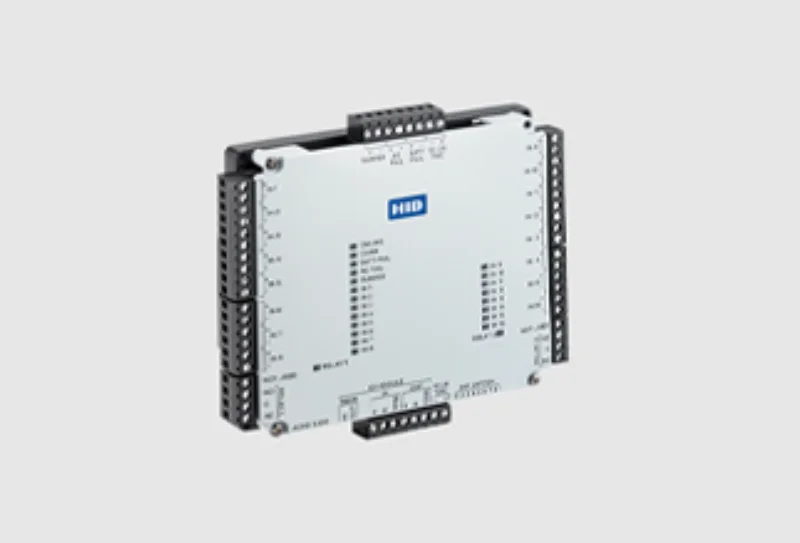

HID Aero X200
Key Features :
- Description :Input monitor interface module — monitoring up to sixteen general-purpose inputs
- Inputs :19 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt
- Output :2 Relays, Form-C with dry contacts, non-latching
- Relay Contact Rating :2 A @ 30 Vdc resistive
- Input Voltage :12 to 24 Vdc +/- 10%
- Maximum Input Current :300 mA
- Operating Temperature :32 to 158°F (0 to 70°C)
- Dimension :6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm)
