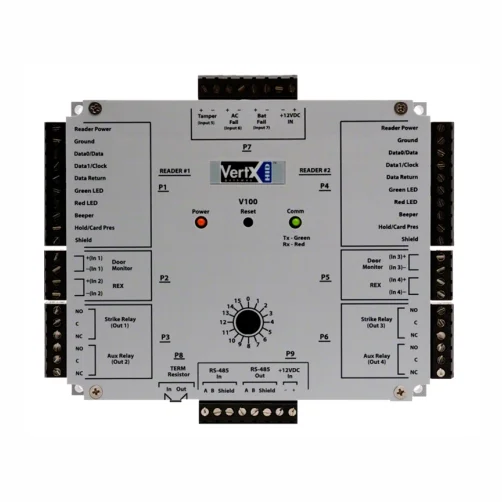

The V100 Door / Reader Interface connects two access control card readers via Wiegand or Clock-and-Data interface controlling
either one or two doors. The V100 features on-board flash memory, allowing program updates to be downloaded via the network.
The V100 connects to the V1000 through a high speed RS-485 network. The V1000, in turn, communicates with the system host via
industry standard TCP/IP protocol over 10/100 Mbps Ethernet or the Internet.
Key Benefits :
Reports supervised inputs.
Connects to the V1000 via RS-485.
Receives and processes real time commands from the V1000.
Reports all activity to the V1000.
Attractive polycarbonate enclosure protects components from damage.
All connections and indicators are fully identified by silk-screened nomenclature on the cover.
Processes off-line access control decisions based on facility code.
UL 294 and UL 1076 recognized components.

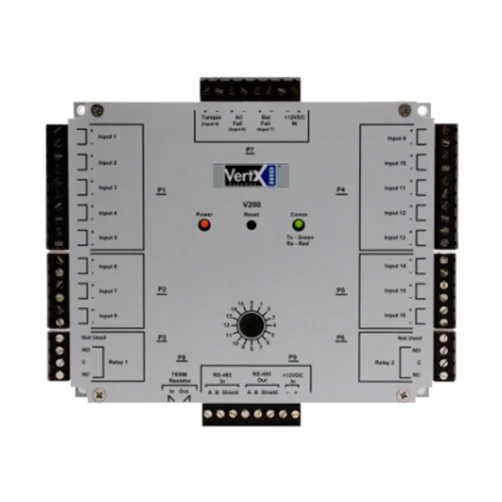

HID VertX V200 Input Monitor Interface
The V200 features on-board flash memory, allowing program updates to be downloaded through the network. The V200 connects
to the V1000 via a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol,
over 10/100 Mbps Ethernet, or the Internet. This architecture minimizes the impact on corporate LANs, by using only one TCP/IP address for
every 32 interfaces, and by handling low-level transactions on the RS-485 network.
Key Benefits :
Reports supervised or un-supervised alarm circuits.
Off-normal condition programmable for each input point (NO or NC alarm devices may be used).
Connects to the V1000 via RS-485.
Receives and processes real time commands from the V1000.
Reports all activity to the V1000.
Allows complex input/output linking when used with the V1000 and V300 Output Control Interface.
Attractive polycarbonate enclosure protects components from damage.
All connections and indicators are fully identified by silk-screened nomenclature on the cover.
HID VertX V300 Input Monitor Interface
The V300 output control interface contains 12 latching Form-C relays, which can connect up to 12 devices controllable by simple
contact closures, such as logic inputs for process equipment, HVAC and elevator control panels, CCTV switchers, etc. Loads exceeding
2 A @ 30 VDC should be controlled via interposing relays. The V300 features on-board flash memory, allowing program updates to be
downloaded via the network. The V300 connects to the V1000 through a high speed RS-485 network. The V1000 communicates with the system
host via industry standard TCP/IP protocol over 10/100 Mbps Ethernet or the Internet.
Key Benefits :
Off-normal status programmable for each input point (NO or NC alarm devices may be used).
12 latching Form-C relays, contacts rated at 2A @ 30VDC.
Connects to the V1000 via RS-485.
Receives and processes real time commands from the V1000.
Reports all activity to the V1000.
Allows complex input/output linking when used with the V1000 and V200.
Attractive polycarbonate enclosure protects components from damage.
