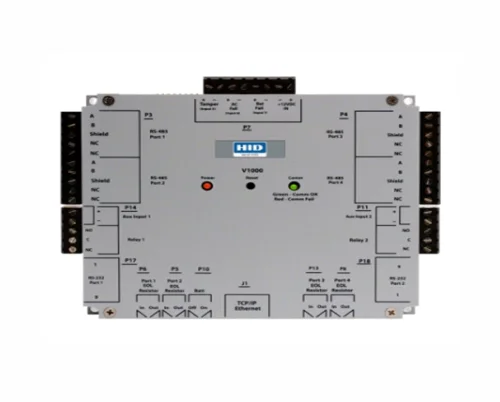

HID VertX EVO V1000 Networked Controller

Master controller interfacing to VertX V100, V200 and V300 door and IO interface devices

Provides a complete and fully functional hardware/firmware infrastructure for access control software host systems.
Enables the replacement of head end software without visiting the access control panel, reducing change out costs.
Stores a complete access control and configuration database for up to 32 Reader Interfaces (up to 64 doors) and 250,000 cardholders.
Connects to the host and other devices on a TCP/IP network.
Receives and processes real-time commands from the host software application.
Access control system interfaces with combinations of devices with a maximum of 32 Devices
VertX V100 - Door/Reader interface (up to 2 doors/2 readers or 1 door/2 readers)
VertX V200 – Input monitor interface (up to 16 monitor points per device)
VertX V300 – Output control interface (up to 12 control relays per device)

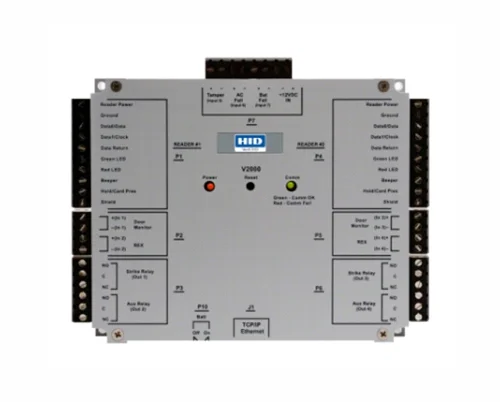

Provides a complete and fully functional hardware/firmware infrastructure for access control software host systems.
Stores a complete access control and configuration database for up to 2 Reader Interfaces (up to 2 doors) and 250,000 cardholders.
Connects to the host and other devices on a TCP/IP network.
Receives and processes real-time commands from the host software application.
Reports all activity to the host; reports supervised inputs /alarms with 255 priorities.
Interface for two Wiegand or Clock-and-Data readers; inputs for 2 door monitors, 2 REX switches, AC fail, Battery fail and Tamper.
Non-latching relay outputs rated 2 A @ 30 VDC
